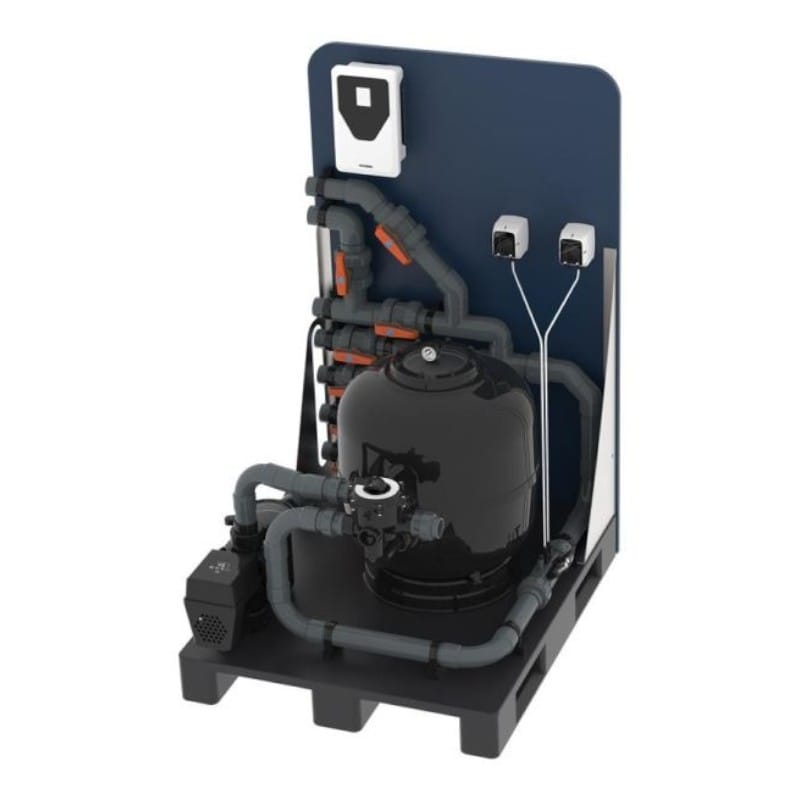

Complete filtration system installed on a plastic pallet. Suitable for pools up to 75 m³. Equipped with 63 mm piping and side connections. The AquaForte polyester sand filter and AquaForte Invereco IVS 100 variable-speed pool pump are mounted on the pallet. The Technopool system treats the water through automatic dosing of chlorine and acid.
The system consists of:
AquaForte ∅600 mm polyester sand filter with side connection.
AquaForte Invereco IVS 100 variable-speed pool pump.
Technopool / Elite Control Connect (pH/Rx control).
Flow chamber for pH/Rx sensors and ground connection.
• 3 ∅63 mm inlets.
• 2 ∅63 mm returns, including a ∅63 mm bypass system for heating.
• Waste outlet ∅50 mm.
• Pre-assembled on a plastic pallet with a PE back wall.
• Pressure-tested (air).
• Exclusive filter media.
• 1 x distribution box for 6 outlets with a 16A fuse and 30mA residual-current protection.
