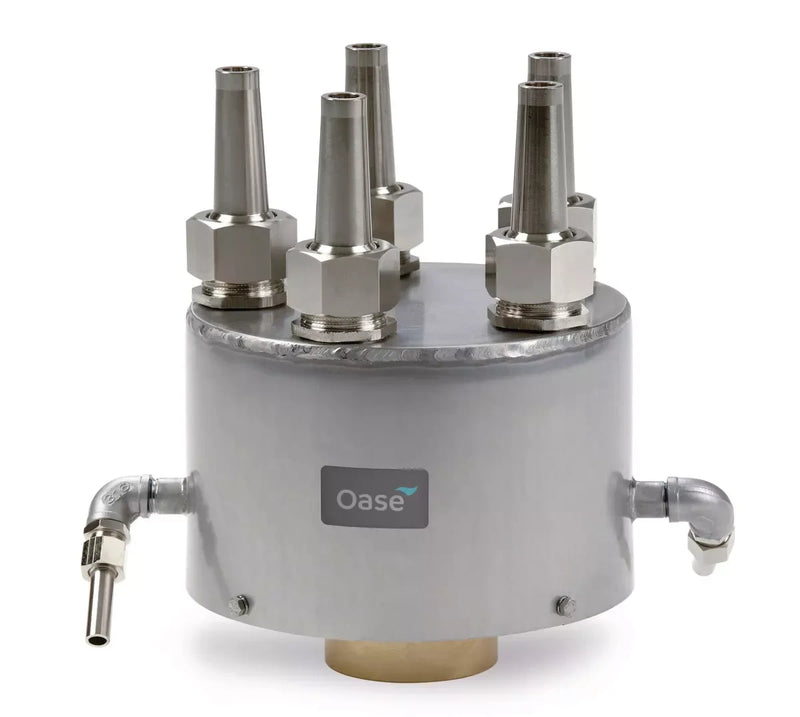

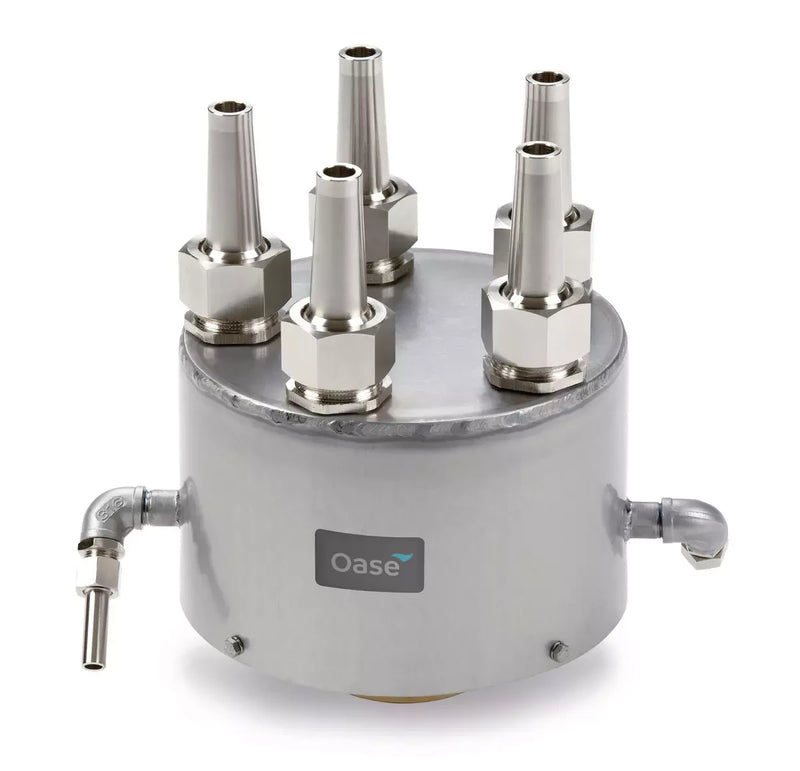

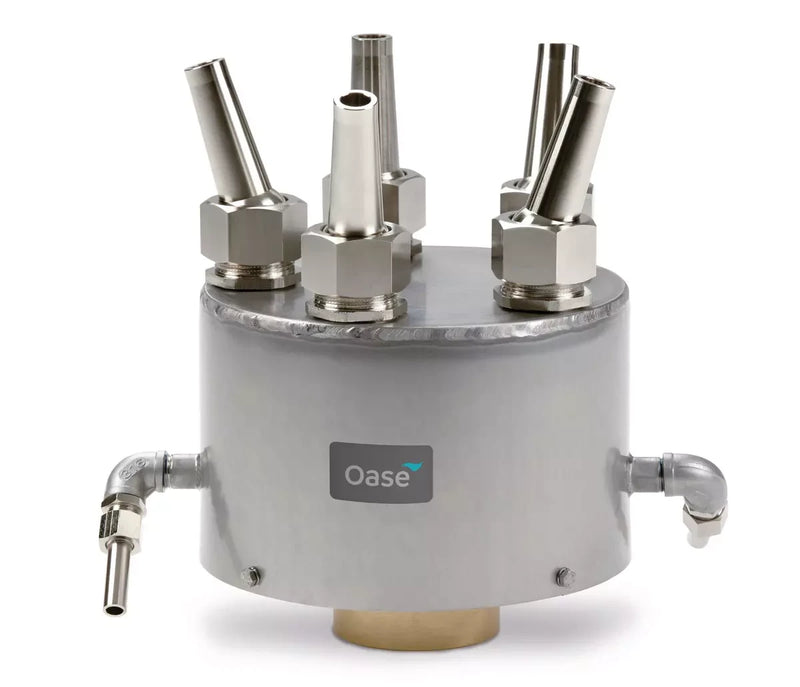

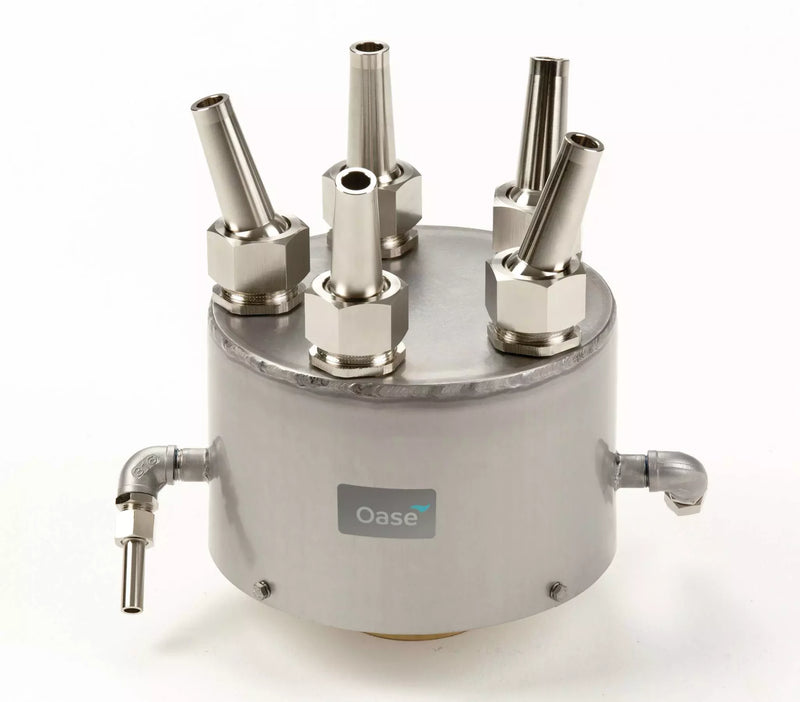

OASE 5-30 E rotary jets - five-jet nozzle for large fountains

Five jets for a moving water display

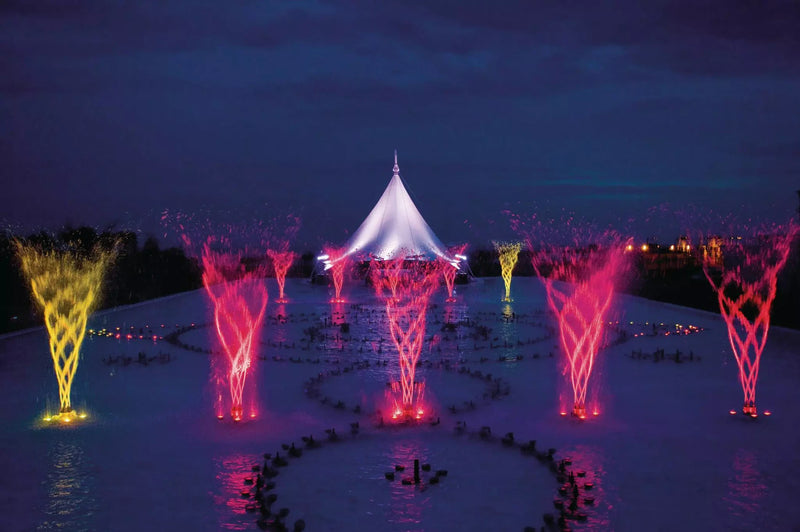

The OASE Jets rotatifs 5-30 E nozzle creates a fountain with five adjustable Comet jets. Their rotation forms a spiral pattern whose appearance varies with the orientation of the nozzles and the hydraulic conditions. The movement is driven by the reaction of the inclined jets; the mechanism rotates on ball bearings.

A nozzle for large-scale fountain projects

This version can produce a fountain reaching 10 metres when the required flow rate and pressure are available. It combines double-coated brass and stainless steel. OASE states that the jets perform well in windy conditions. The rotation speed may vary with the water level around the nozzle.

• Model: Jets rotatifs 5-30 E INT.
• Dimensions, length × width × height: 381 × 254 × 343 mm.
• Materials: double-coated brass and stainless steel.
• Net weight: 17.5 kg.
• OASE reference: 50473.
• EAN: 4010052504735.

Size the system before installation

This type of display requires a suitable pump and piping. Have the hydraulic requirements checked for the desired height, as well as the space needed for the water to fall. For dynamic control, OASE requires reaching the maximum height in at least three seconds and limits operation at full height to four times per minute. Follow the manufacturer's instructions during commissioning.
