OASE BioTec ScreenMatic² Set 40000 OC – filtration kit with AquaMax Eco Premium 13000

A ScreenMatic kit with AquaMax Eco Premium 13000 pump

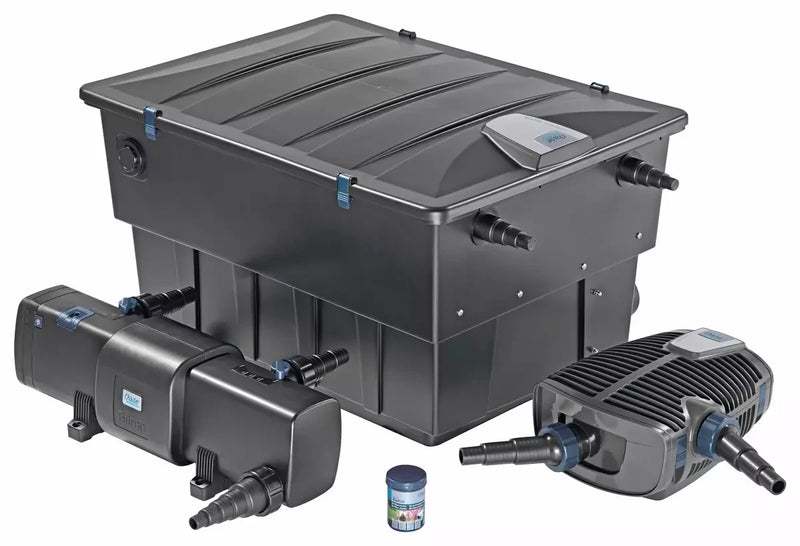

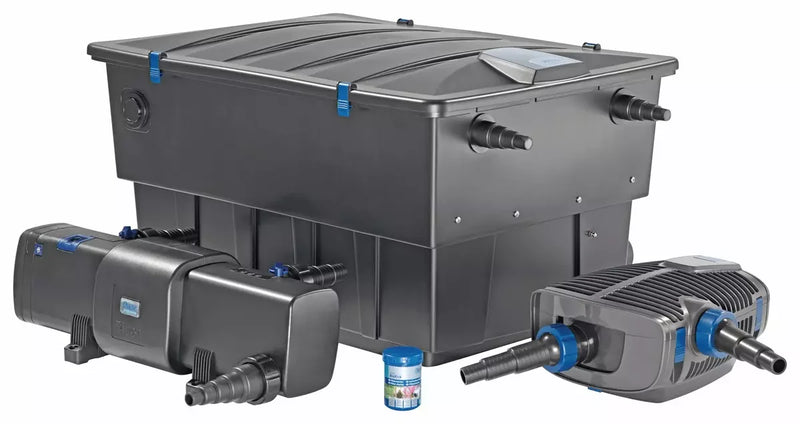

The BioTec ScreenMatic² Set 40000 OC combines the belt filter, pump and UVC clarifier required for a pond filtration system. The screen automatically separates coarse impurities before they reach the foams, reducing fouling and extending the intervals between maintenance operations.

Contents of this OC version

• BioTec ScreenMatic² 40000 filter, reference 57694.
• AquaMax Eco Premium 13000 pump, reference 75925.
• Bitron C 36 W clarifier, reference 56799.
• AquaActiv BioKick biological activator, 95 g, 100 ml packaging, reference 51277.

Reference 74445 corresponds to this set equipped with the 13000 pump. OASE Control functions require a Garden Controller Cloud or an FM-Master Cloud, which must be purchased separately.

Choose according to the pond's stocking level

OASE states a maximum capacity of 40 m³ without fish, 20 m³ with fish and 10 m³ with koi carp. The choice also depends on the pond's actual load, the amount of food distributed and exposure to sunlight. The maximum flow rate indicated for the filtration system is 9,000 l/h.

Filtration designed to make maintenance easier

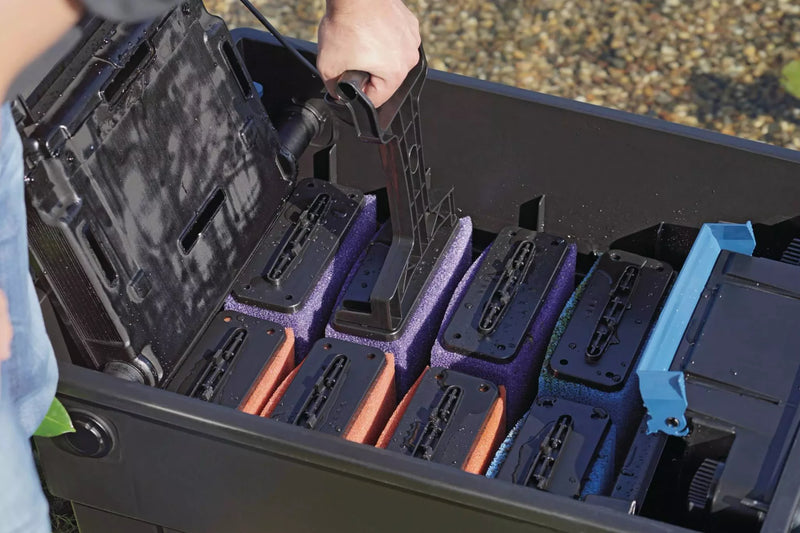

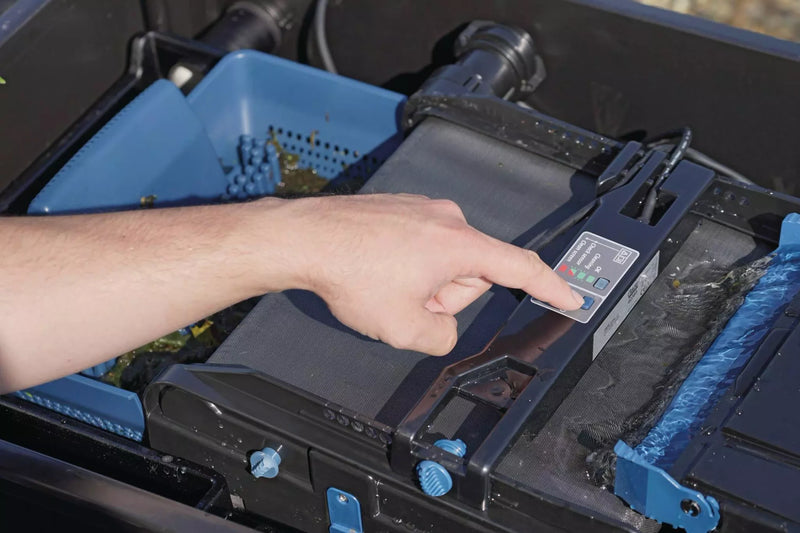

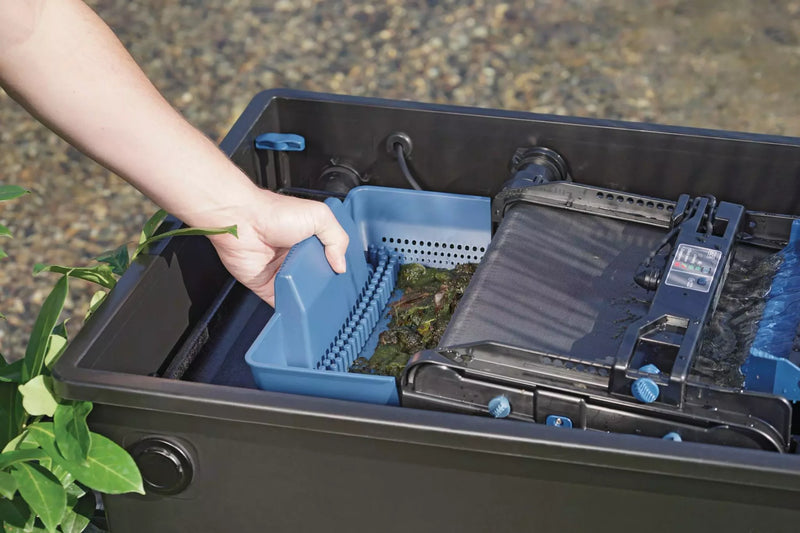

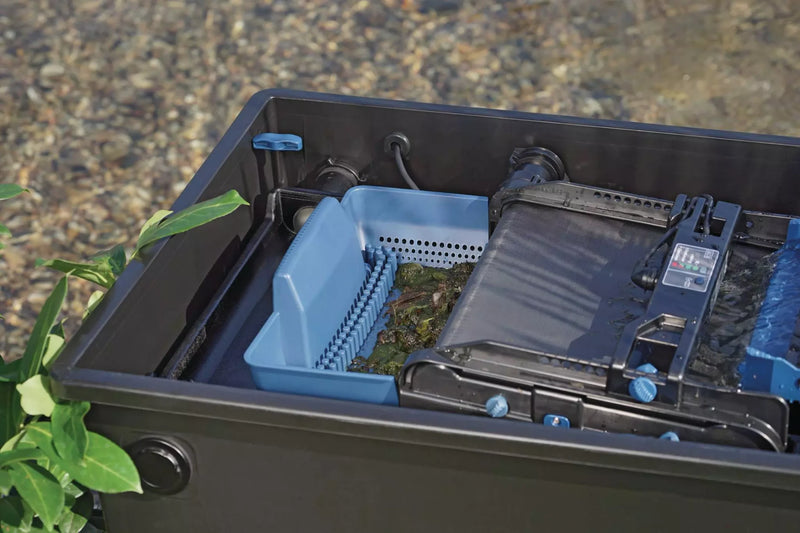

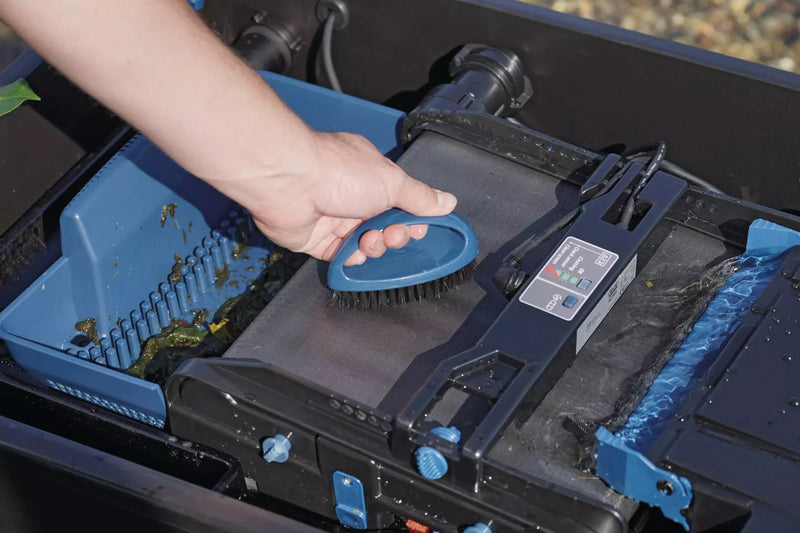

The belt moves automatically according to the level of fouling detected. The waste falls into a basket that you can remove, while the various foams provide mechanical and biological filtration. The foams can be cleaned directly in the filter, and a drain allows dirty water to be removed.

• Filter dimensions: 788 × 590 × 445 mm.
• Coarse impurity separation: 300 µm.
• 8 foams: 2 blue, 3 red and 3 purple.
• Filter granules: 2.5 kg.
• Filter power: 5 W; UVC: 36 W; pump: 100 W.
• Filter outlet: DN75; impurity drain: DN50.
• Manufacturer reference: 74445; EAN: 4010052744452.

Plan for pipes and fittings suited to your installation, a gravity return to the pond and convenient access to the filter for maintenance operations.
