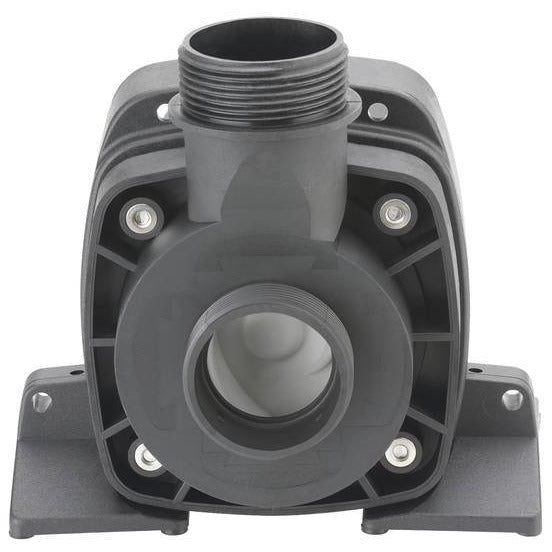

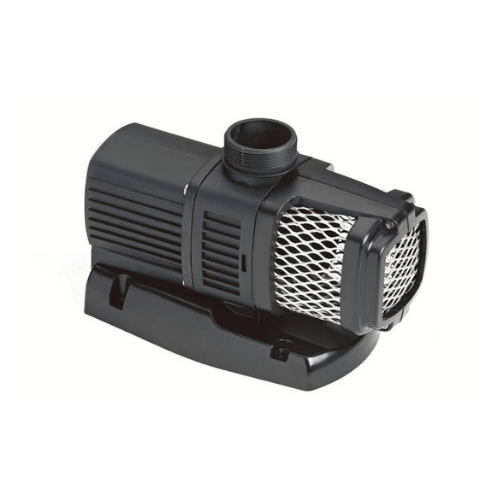

AquaMax Eco Gravity 20000 – Low-consumption gravity pump for pond filtration

Designed for large gravity-filtered ponds, the AquaMax Eco Gravity 20000 from Oase combines power, energy efficiency, and exceptional reliability. Its compact design and premium components make it an ideal choice for professional filtration systems or natural pools.

A robust pump designed for demanding gravity systems

Specially developed for gravity-fed installations, this low-consumption pump ensures a constant flow while significantly reducing electrical consumption. Its smart design optimizes water flow while limiting pressure loss.

• Powerful and economical flow: up to 18,000 L/h with only 120 W consumption
• High resistance: operates down to -20 °C without risk of freezing or damage
• Impurities up to 6 mm: efficiently transports debris and particles to the filter
• Versatile installation: suitable for submerged or dry installation, in a pump chamber
• Built-in safety: automatic shutdown in case of dry running (EFC system by Oase)

A professional solution for always clean water

Thanks to its durable construction and proven performance, the AquaMax Eco Gravity 20000 is especially recommended for large ponds, swimming ponds, or heavy-use installations. Its longevity and ease of integration make it a high-end piece of equipment, ready to meet any challenge.

Main technical features

• Dimensions (L x W x H) : 272 x 142 x 182 mm
• Rated voltage : 220 - 240 V / 50 Hz
• Power consumption : 120 W
• Power cable length : 10.00 m
• Net weight : 4.50 kg
• Warranty (incl. extension) : 3 + 2 years
• Maximum flow rate : 300 l/min (18,000 l/h)
• Maximum water column height : 2.20 m
• Pressure side connection : 50 mm / 2"
• Suction side connection : 50 mm / 2"
• Pipe connections : 50 mm / 2", DA 63, DA 75, DA 110
• Filter suction surface : 200 cm²
• Maximum impurity extraction : 6 mm
• Electronically adjustable : No
• Installation type : Submersible or dry
• Product reference: 57093
• EAN : 4010052570938


Included accessories and design details

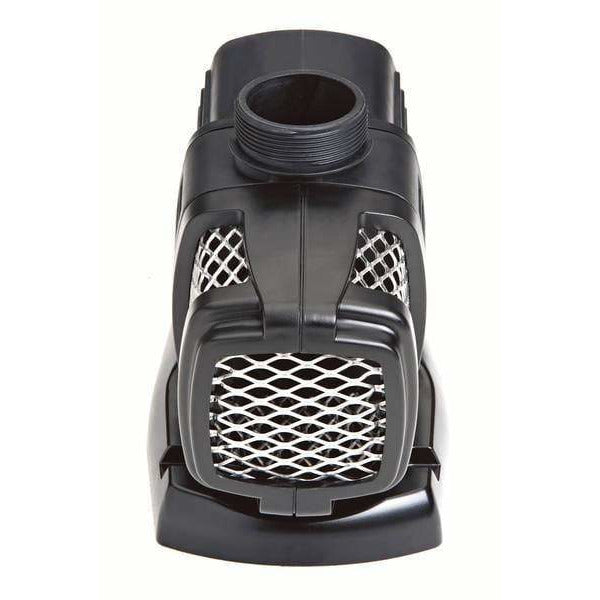

Pump protection in stainless steel

The stainless steel filter basket can handle particles up to 6 mm in diameter without risk to the pump.



Removable foot

Convenient for installations in confined spaces, it offers good stability while being easily detachable.

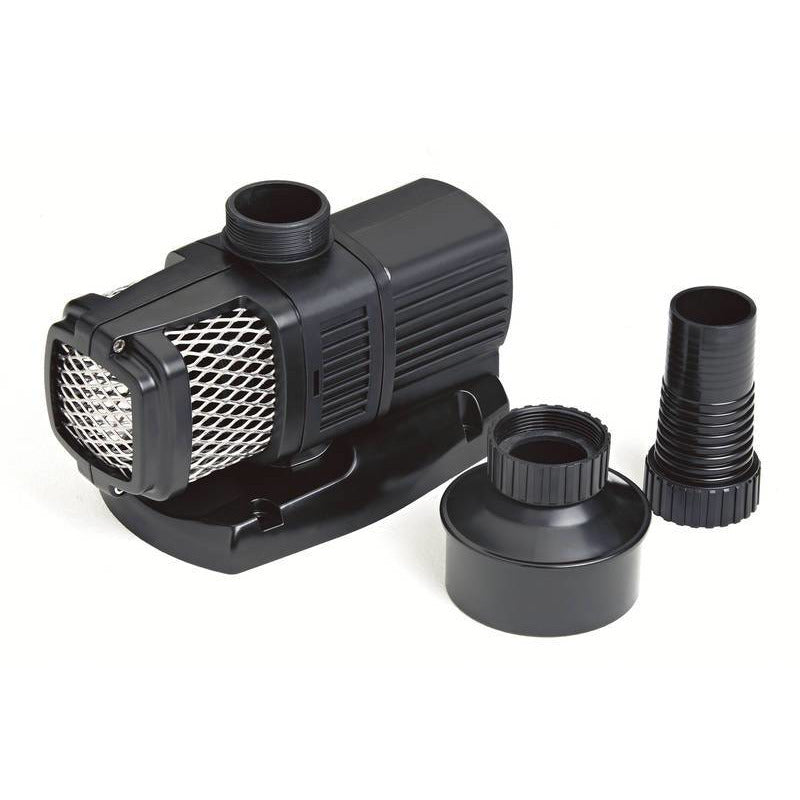

Adapter kit

Included in the delivery, it allows connecting the pump to hoses (50 mm / DA 63) or pipes (DN 75 / DN 110) depending on the pond configuration.
