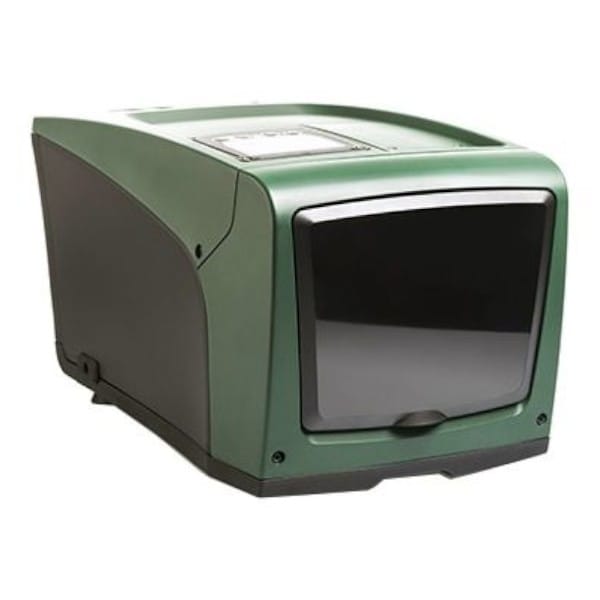

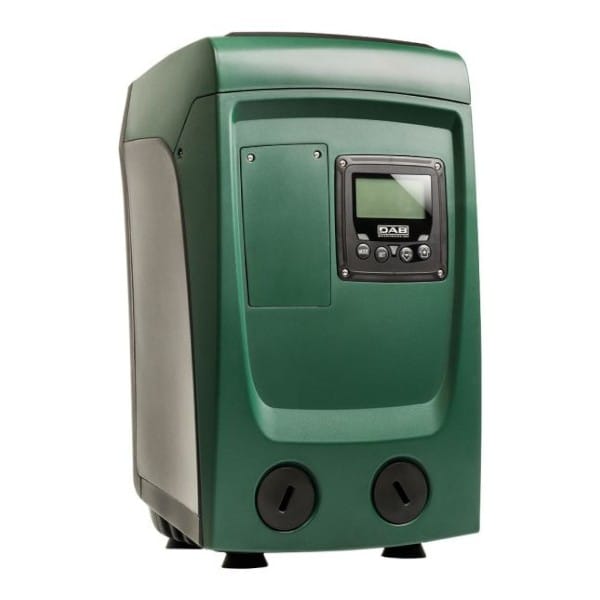

DAB E.sybox Mini

Name: DAB E.sybox Mini
Brand: Fluidra
SKU: RK572
Price: 1900.0 EUR
Availability: InStock

€1.900,00 - €2.894,00

€1.900,00

€1.900,00 - €2.894,00

€1.900,00

by Fluidra

Quantity

Secure payment

Use the most secure payment methods: Bancontact, debit card, credit card, PayPal, ...

SKU RK572

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Delivery information

You can select our different delivery options at the cart stage. We deliver with BPOST & DPD. For bulky packages, these are delivered by GEODIS or by us.

A passionate team at your service

Foudebassin is a team of enthusiasts dedicated to pond services.

DAB E.sybox Mini

Description

E.SYBOX mini is DAB's compact automatic pressurization system, developed to supply water to a single residence. E.SYBOX mini ensures the comfort of constant pressure in the system (pressure adjustable from 1 to 5 bar) and is energy-efficient thanks to its integrated inverter technology. Suitable for drinking water, domestic systems, and garden applications.

No additional parts are required when installing the E.SYBOX mini3. The system consists of a high-frequency, self-priming twin-impeller pump, electronic control with inverter technology, pressure and flow sensors, an adjustable high-resolution LCD screen, an integrated 1-liter expansion tank, and a cartridge check valve. Thanks to the dual suction and delivery connections, horizontal and vertical installation is possible. The compact size makes it possible to install the system in hard-to-reach and poorly ventilated locations.

Operating range

- Capacity up to 80 l/min; with a delivery head of up to 55 m

- Fluid to be pumped: clean, free of solids and minerals, non-viscous, non-aggressive, non-crystallized, and chemically neutral

- Liquid temperature range from 0°C to +35°C for domestic use

- For other uses from 0°C to +40°C

- Maximum suction depth of 8 meters

- Maximum ambient temperature +50°C

- Maximum operating pressure 7.5 bar (750 kPa)

- Motor protection class IPX4 - Insulation class F

- Horizontal or vertical installation in a fixed position
