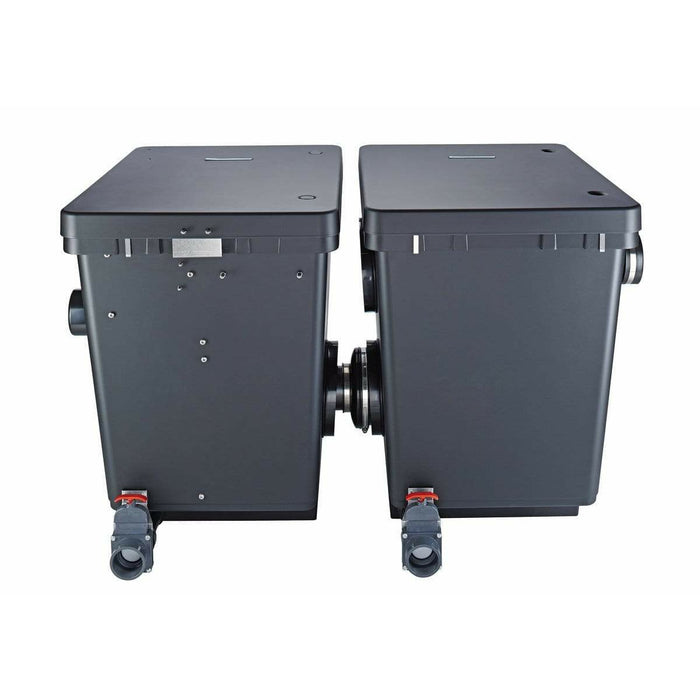

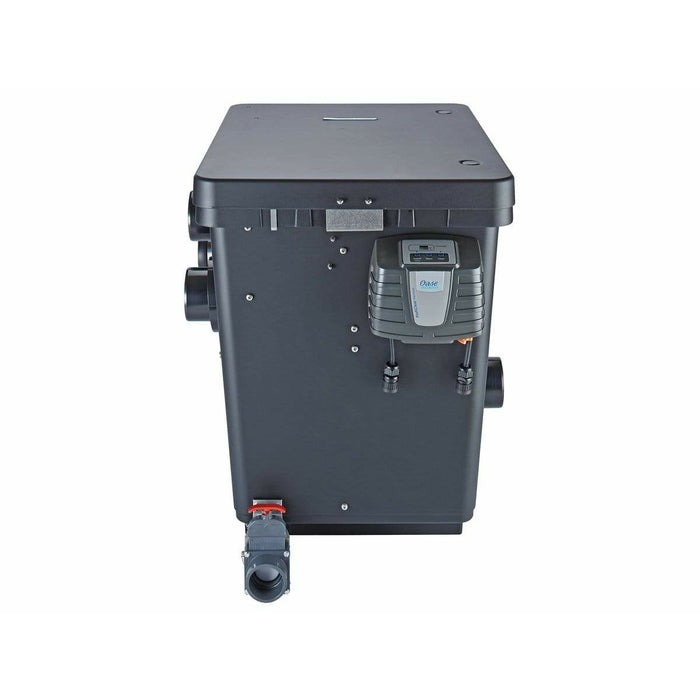

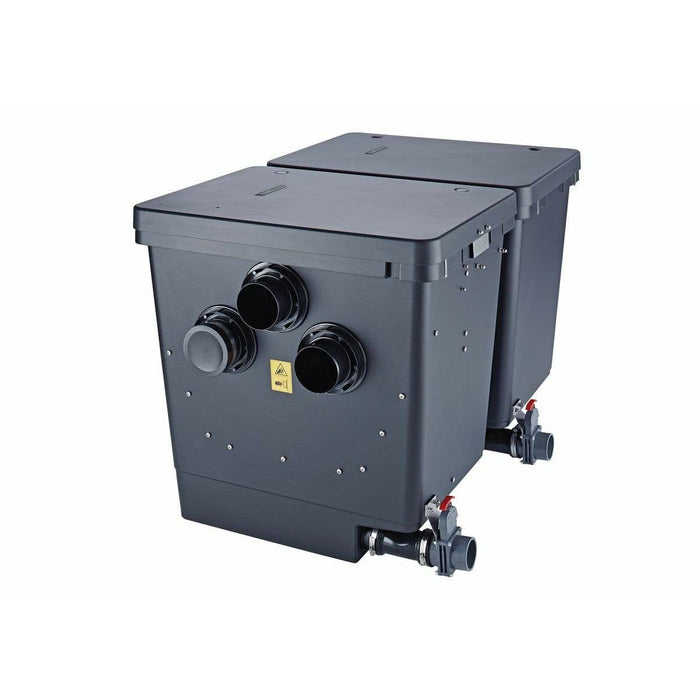

ProfiClear Premium Compact-M Gravity - All-in-one drum filter - Oase

Original price €4.179,95 - Original price €4.179,95
Original price
€4.179,95
€4.179,95 - €4.179,95
Current price €4.179,95

PAIEMENT SÉCURISÉ

apple pay american express master paypal visa

High filtration power and a small footprint characterize this compact alternative for the "smallest" pools up to 140 m³. Possibility of filtration up to 60 µm. With Moving Bed system (turbulent mixing process) for optimized mixing and wa...
Lire la suite >>

SKU 47010

EAN: 4010052470108

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

High filtration power and a small footprint characterize this compact alternative for the "smallest" pools up to 140 m³. Possibility of filtration up to 60 µm. With Moving Bed system (turbulent mixing process) for optimized mixing and water purification. Available in pumped or gravity systems. Easily adjust all settings from the app thanks to the connection options to the Easy Garden Control (EGC) system.

  • Compact drum filter as an inexpensive alternative for smaller ponds
  • Small footprint and good integration capacity
  • Conveniently adjust all settings from the app thanks to the connection options to the Easy Garden Control (EGC) system. Retrofitting of existing installations possible via upgrade kit available separately
  • Beneficial alternative for smaller ponds, especially if they are home to Koi

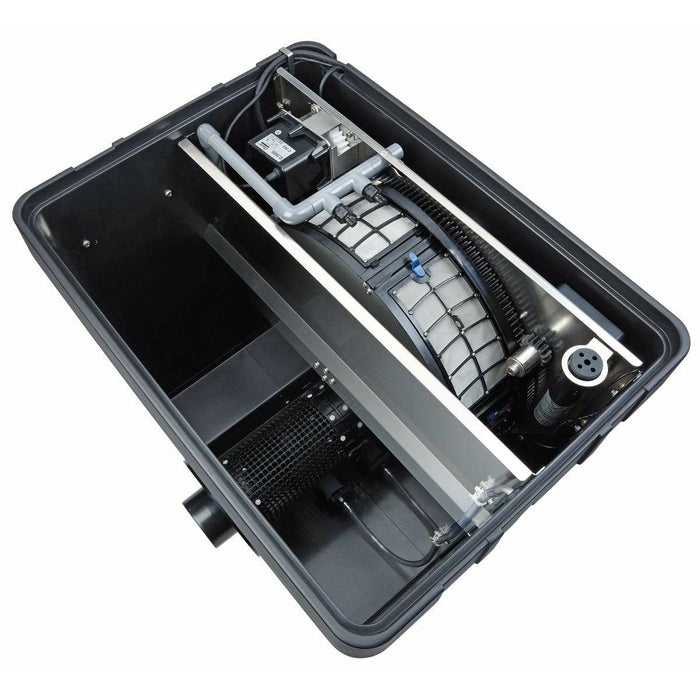

  • The fully automatic coarse particle separator flushes the dirt trapped in the filter using the drum filter technique.
  • Proposed for pumping principle or gravity principle
  • User-friendly control of all settings thanks to the connection options provided by the Easy Garden Control (EGC) system
  • With Moving Bed system (turbulent mixing process) for optimal purification of the stirred water
  • High capacity thanks to depth filtration down to 60 microns
  • Hel-X 13 filter material with significantly larger colonization surface for efficient breakdown of nutrients and harmful substances
  • An innovative and reliable product "Made in Germany" (except the pressure pump)
  • The filter is then rinsed with purified pool water. A clean water connection is therefore not necessary.
  • Particularly quiet operation thanks to complete sound insulation
  • Easy to remove sieves separately (without tools) and manual function
  • Grids on the sieves reliably retain string algae and other coarse particles that clog the drum
  • Low installation height to ensure flexibility for gravity installations

TECHNICAL DATA

Dimensions (LxWxH) mm 885x685x820
Nominal voltage 230V / 50Hz
Energy consumption W 5
Cleaning consumption W 670
Cable length m 5.00 + 5.00
Net weight kg 81.00
Warranty (+ Extended Warranty) Year 2+1
Biological filter surface m2 38.2
Protected biological filter surface m2 32.2
Control unit Microcontroller
Temperature indicator Digital
Separation of coarse impurities µm 80
Number of nozzles / rinsing flow 2 x 3.5 l/min
Rinse pump 4 bar
Automatic rinsing Manual, Sensor, Time Lapse
Number of screening elements PCE 6
Filter suction area cm 2 1135
Material Thermoset fiberglass plastic/stainless steel
Number of entries PCE 2
Inlet fittings DN 110
Number of outputs PCE 1
Outlet fittings DN 110
Dirt outlet connections DN 75, DN 110
Rinsing chute connection DN 110
Connection to AquaOxy 2000, Bitron Gravity, ProfiClear Compact pump chamber
Liters per hour min. l/h 7500
Liters per hour max. l/h 16500
Installation height above water level cm 10.5
type of use Gravitation
Others Pre-installed ventilation
40l organic material Hel-X 13
Waste outlet with valve included
