ProfiClear Premium DF-L Gravity - High-end intelligent modular filtration system - Oase

Original price €4.464,95 - Original price €4.464,95
Original price
€4.464,95
€4.464,95 - €4.464,95
Current price €4.464,95

PAIEMENT SÉCURISÉ

apple pay american express master paypal visa

High-end intelligent modular filter system for koi ponds and other large ponds up to 260 m³.

The highly efficient filtration system with depth filtration down to 60 µm (and ...
Lire la suite >>

SKU 47005

EAN: 4010052470054

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

High-end intelligent modular filter system for koi ponds and other large ponds up to 260 m³.

The highly efficient filtration system with depth filtration down to 60 µm (and finer than a hair) is app-controllable via the Easy Garden Control System (EGC). Very comfortable: the system cleans itself. Excellent degradation rates of ammonium, ammonia, nitrites and nitrates. The stainless steel elements give great stability to the filter housing, access to the drum being greatly facilitated thanks to the freewheel function.

  • Proven professional technology with over 3 years of development
  • Modern modular filter system for professional water quality in minimal volume

Characteristic

  • Modern modular filter system for professional water quality in minimal volume
  • Proven professional technology with over 3 years of development
  • Filtration down to 60 µm
  • Fully automatic cleaning

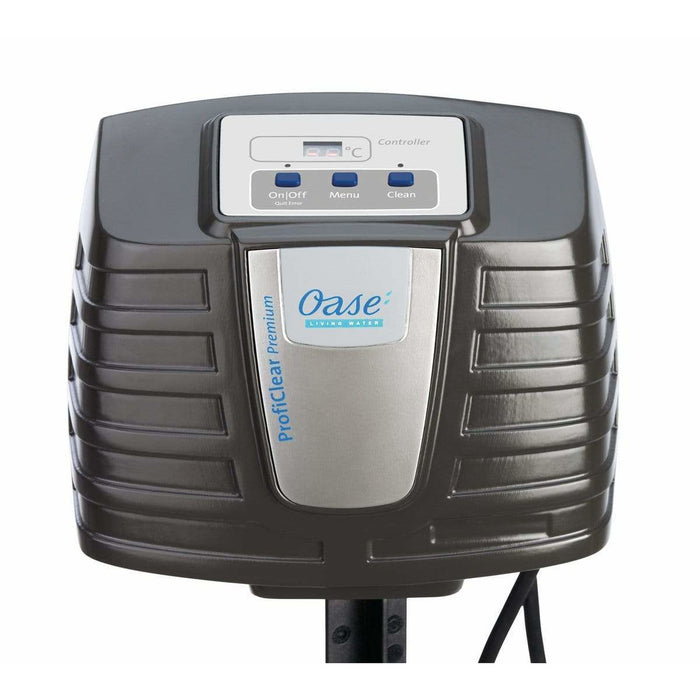

  • An externally usable microcontroller system monitors and controls the main functions
  • Sieves easy to remove separately (without tools) and manual function for easy access to the drum
  • Extremely quiet operation
  • Powerful high-pressure pump for rinsing the drum included in the delivery
  • Connection options to the Easy Garden Control (EGC) system
  • Excellent degradation rates of ammonium, ammonia, nitrites and nitrates
  • Conveniently adjust all settings from the app thanks to the connection options to the Easy Garden Control (EGC) system. Retrofitting of existing installations possible via upgrade kit available separately
  • Highly efficient decomposition of pollutants and nutrients thanks to professional filter media used in a turbulent mixing process (Moving Bed)
  • Excellent filtration capacity with intelligent control functions
  • Intelligent self-cleaning function (drum filter module)
  • Flexible adaptation of the filter system to individual needs (Individual module)
  • Innovative and reliable product "Made in Germany*" (*except pump)
  • Perfect connection flexibility with 4 entries x DN 110 maximum
  • Freedom of layout and decor guaranteed by the protrusion of only 11.5 cm above the water
  • An auxiliary sensor detects any failure of the pump and reports it on the display or via the EGC
  • Flow rate up to 33 m³/h

TECHNICAL DATA

Dimensions (LxWxH) mm 830x600x820
Nominal voltage 230V / 50Hz
Energy consumption W 5
Cleaning consumption W 1050
Cable length m 5.00 + 5.00
Net weight kg 76.00
Warranty (+ Extended Warranty) Year 2+1
Control unit Microcontroller
Temperature indicator Digital
Separation of coarse impurities µm 60
Number of nozzles / rinsing flow 4 x 2.5 l/min
Rinse pump 6 bar
Automatic rinsing Manual, Sensor, Time Lapse
Number of screening elements PCE 8
Filter suction area cm² 3454
Material Thermoset fiberglass plastic/stainless steel
Number of entries PCE 4
Inlet fittings DN 110
Number of outputs PCE 2
Outlet fittings DN 150
Dirt outlet connections DN 75, DN 110
Rinsing chute connection DN 110
Connection to Bitron Gravity
Liters per hour min. l/h 10000
Liters per hour max. l/h 33000
Installation height above water level cm 11.5
Poss. water level difference -20mm
type of use Gravitation
Others Waste outlet with valve included
